Brief communication: Use of lightweight and low-cost steel net electrodes for electrical resistivity tomography (ERT) surveys performed on coarse-blocky surface environments

ERT is a widely used geophysical technique for characterizing various mountainous environments where land surfaces consist of coarse blocks and debris (e.g., rock glaciers). In these conditions, installing steel spike electrodes is both challenging and time-consuming, and achieving acceptable grounding resistance between the electrodes and the surface is difficult. In this work, we successfully tested the performance and the durability of an alternative electrode that is more robust, lightweight, and cost-effective than the recently proposed textile electrode. A stainless-steel net and sponge are used to create small bags that can be easily inserted between the blocks and later removed.

1 Introduction

Electrical Resistivity Tomography (ERT) is one of the most widely used geophysical methods for the characterization of various study environments (e.g., Boaga et al., 2018; Deiana et al., 2022; Carrera et al., 2024; Pavoni et al., 2024; Peruzzo et al., 2024), as data acquisition is generally rapid and relatively straightforward (Binley, 2015). Thanks to the development of reliable open-source inversion techniques, the distribution of electrical properties in the subsurface can be efficiently reconstructed (Rücker et al., 2017). The reliability of resistivity models is closely linked to the quality of acquired data, which in turn depends on achieving good electrical contact between electrodes and soil (Pavoni et al., 2022). This resistance is part of the overall grounding resistance, which depends on soil resistivity, electrode geometry, and the quality of contact with the ground. Grounding resistance plays a crucial role in ensuring effective current injection and reliable ERT measurements (Binley and Slater, 2020). For this reason, modern electrical resistivity meters perform an automated check before acquisition by injecting a low current through each electrode, measuring the resulting voltage drop to estimate electrode resistance, and identifying poorly coupled electrodes. Therefore, electrodes must be made from highly conductive materials. Common choices include graphite, copper, and stainless steel (Rücker and Günther, 2011). Graphite offers low resistance but poor mechanical performance. Copper has excellent conductivity but tends to oxidize, reducing effectiveness over time. Stainless steel, though less conductive, does not oxidize, has good mechanical strength, and is cost-effective (Reynolds, 2011). For these reasons, stainless-steel spike electrodes, typically 30–40 cm in length and 1–2 cm in diameter, are widely used in ERT surveys (Rücker and Günther, 2011). While easy to install in fine soils, their deployment in coarse-blocky terrains such as landslide deposits or rock glaciers is often difficult and time-consuming (Bast et al., 2024). Removal can also be problematic when electrodes become embedded between blocks. Even when physical contact is good, sponges soaked in salt water are often used to reduce contact resistance (Pavoni et al., 2022).

To facilitate the installation of ERT arrays in rock glaciers, Buckel et al. (2023) proposed an alternative electrode consisting of a conductive textile sachet filled with sand (Mudler et al., 2021). These fist-sized electrodes can be easily inserted between blocks, wetted with salt water, and removed after use. Their performance was tested by Bast et al. (2024), confirming their reliability. However, the conductive textile used in both studies contains copper and nickel, which are prone to oxidation, potentially reducing performance over time (Bast et al., 2024). Moreover, each electrode costs approximately EUR 15 and weighs around 250–300 g, making it relatively expensive and heavy.

In this work, we propose a lightweight stainless-steel net electrode filled with a carwash sponge. This design uses oxidation-resistant material, significantly reduces weight and cost, and improves the mechanical robustness of the electrode compared to textile-based solutions. We tested the performance of the newly developed stainless-steel net electrode by conducting ERT surveys at the same coarse-blocky sites used by Bast et al. (2024), and compared the results with those obtained using traditional stainless-steel spikes coupled with sponges. In addition, we tested their long-term performance by employing them on a permanent ERT monitoring line installed on a rock glacier.

2 Site description

The proposed stainless-steel net electrodes were tested in typical high mountain environments characterized by coarse blocky and debris-covered surfaces, including a landslide deposit (Marocche di Drò), an inactive rock glacier (Sadole rock glacier), and an active rock glacier (Flüela rock glacier). For detailed site descriptions, maps, and images, we refer to Bast et al. (2024).

The landslide deposit known as the Marocche di Drò (Trentino, Italy; 45.983° N, 10.941° E) consists of a chaotic surface accumulation of calcareous blocks and debris (limestone), underlain by a more heterogeneous sedimentary body (Weidinger et al., 2014). The test survey was carried out along the same profile previously investigated by Bast et al. (2024).

The Sadole rock glacier (Trentino, Italy; 46.242° N, 11.592° E) features a surface dominated by large blocks and coarse debris of ignimbritic volcanic origin (Pavoni et al., 2023). According to Bast et al. (2024), the central lobe hosts a frozen layer at approximately 10 m depth. Our comparison test was conducted along the first half of their original survey line.

The Flüela rock glacier (Grisons, Switzerland; 46.746° N, 9.951° E) is characterized by a chaotic mixture of metamorphic blocks and boulders (amphibolites and paragneisses), with some interspersed patches of finer sediments (Boaga et al., 2024). The comparative measurements were performed along the upper section of the profile investigated by Bast et al. (2024).

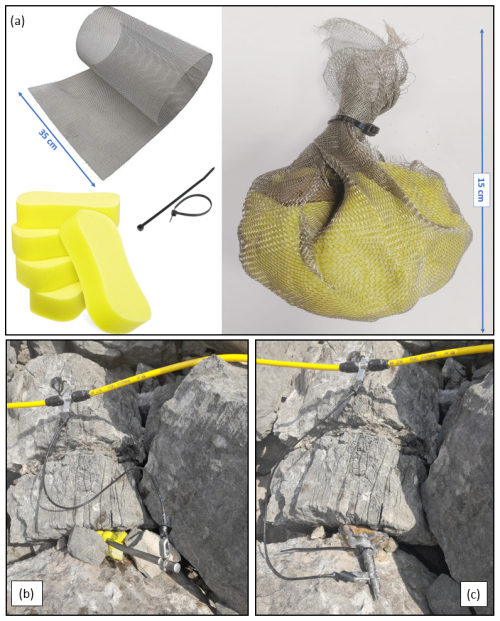

Figure 1 (a) Stainless steel net electrode assembled by cutting 35×35 cm squares from a thin commercial mesh, inserting a car-wash sponge, and securing the unit with a cable tie. (b) Traditional stainless steel spike electrode with a saltwater-soaked sponge, as used at the Marocche di Drò site. (c) Proposed stainless steel net electrode, also moistened with salt water, deployed at the same site.

3 Methods

3.1 Stainless steel-net electrodes

To replicate the size of the textile electrode (Mudler et al., 2021, Buckel et al., 2023), each stainless-steel net electrode was constructed by cutting 35 ×35 cm square sheets from a thin commercial stainless-steel mesh (Fig. 1a). The net was shaped into a fist-sized pouch filled with a car-wash sponge and sealed using a standard electrician's cable tie. Each electrode weighs approximately 50 g, i.e., one-fifth the weight of traditional stainless-steel spike or textile electrodes, and the material cost is around EUR 3–4, i.e., one-quarter of the cost of textile electrode design.

3.2 Data acquisition

ERT data were collected using a Syscal Pro resistivity meter (Iris Instruments, Orléans, France; https://www.iris-instruments.com/, last access: 26 September 2025) with 24-electrode arrays and site-specific electrode spacings: 5 m at Marocche di Drò, 3.5 m at Sadole, and 2 m at Flüela. A dipole–dipole acquisition scheme was adopted with variable electrode skips, as described in Pavoni et al. (2023), and included reciprocal measurements, i.e., with current and potential dipoles interchanged (Binley and Slater, 2020).

For each survey line, measurements were performed using traditional stainless-steel spike electrodes (combined with sponges; Fig. 1b), and then repeated using the proposed stainless-steel net electrodes (Fig. 1c). In both cases, saltwater was applied to improve the galvanic contact between the electrodes and the coarse blocky surface (Pavoni et al., 2022). The two electrode types were installed in the same locations between blocks and boulders (Fig. 1b–c), with approximately 0.5 L of saltwater poured on each electrode prior to acquisition.

At the Sadole rock glacier site, net electrodes were installed for a permanent ERT monitoring line to assess their long-term performance. We compared measurements (grounding resistance, injected current, and reciprocal error) acquired in June 2024 and June 2025.

3.3 Data processing

At each test site, grounding resistance was measured prior to data acquisition for both electrode types. To compare these values, grounding resistance measurements from each electrode pair were visualized using histograms. Dataset quality was assessed by calculating the reciprocal error for each quadrupole (Tso et al., 2017), and histograms were also used to compare the distribution of injected currents and reciprocal errors across the different electrode types.

The apparent resistivity pseudosections were compared by calculating the differences in measured resistance values between the two datasets. Additionally, apparent resistivity values were analysed using scatterplots with linear regression lines and corresponding R² values. Each dataset was filtered using a reciprocal error threshold to ensure a homogeneous distribution of data points across the profile (Pavoni et al., 2023). This value was used as expected data error in the inversion process, which was carried out using the open-source software ResIPy (Blanchy et al., 2020). Note that, only the quadrupoles common to both datasets after filtering were used for the inversion process (Bast et al., 2024). The resulting inverted resistivity models were then compared by analysing both the section images and the cell-wise resistivity values from the inversion mesh using scatterplots with regression lines and R² values.

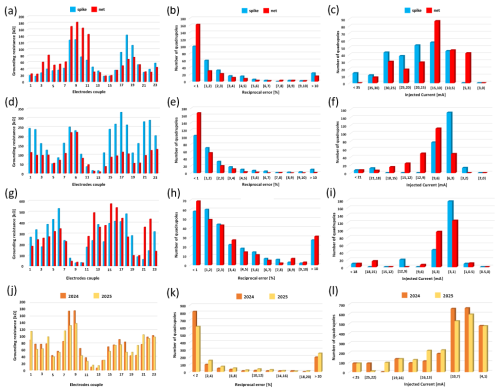

Figure 2 Histograms (a), (d), and (g) compare grounding resistances [kΩ] recorded at the Marocche di Drò, Sadole, and Flüela test sites, respectively, using traditional stainless-steel spike electrodes with sponges (blue) and the proposed stainless-steel net electrodes (red). Panels (b), (e), and (h) show the corresponding reciprocal error [%] of the quadrupoles for the same sites and electrode types, while (c), (f), and (i) present the injected electric currents [mA]. All electrodes were moistened with the same amount of saltwater and placed at comparable positions between surface boulders (see Fig. 1b–c). Panels (j), (k), and (l) illustrate the contact resistances (first 24 electrodes, as in panel a), reciprocal error, and injected current for datasets acquired at the Sadole site in June 2024 (orange) and June 2025 (yellow) along the permanent ERT monitoring line using the stainless-steel net electrodes.

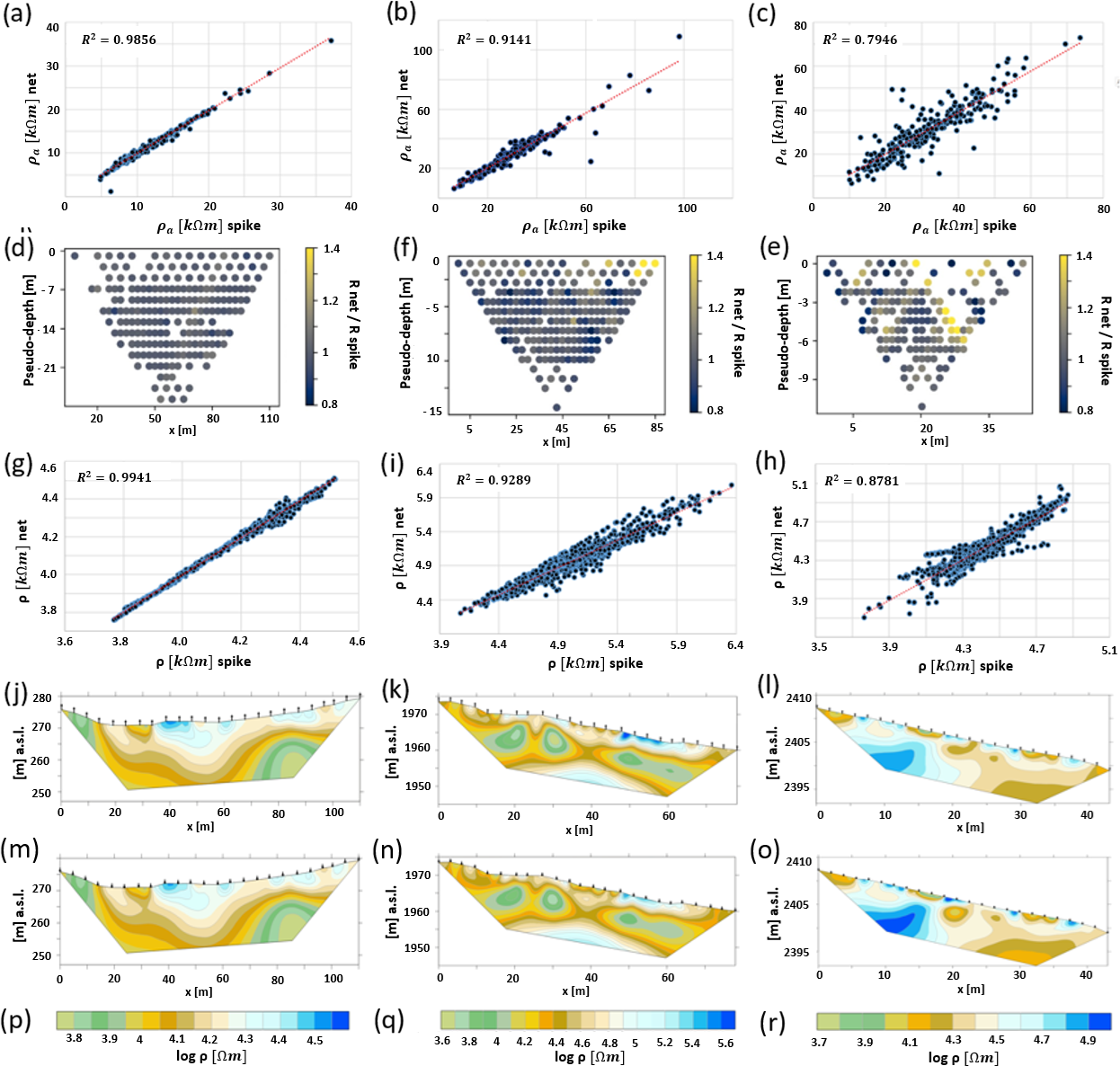

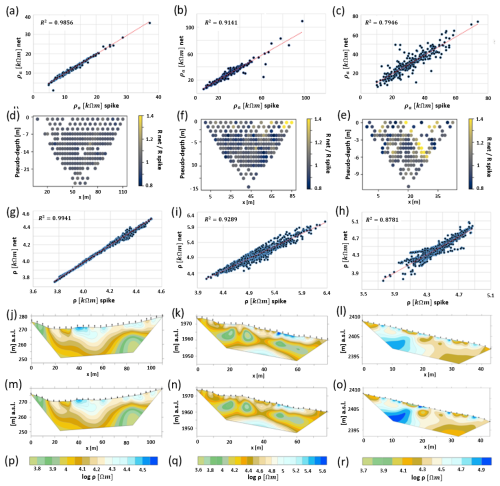

Figure 3 (a) Scatterplot comparing apparent resistivity values (ρ_a) measured at the Marocche di Drò site using traditional stainless-steel spike electrodes (with sponges) and the proposed stainless-steel net electrodes. Red dashed lines indicate linear regressions, with corresponding R² values. (d) Pseudosection showing the ratio of resistance values measured with spike electrodes to those measured with net electrodes, based on the common quadrupoles retained after data filtering for inversion. (g) Scatterplot comparing inverted resistivity values (ρ) obtained from the two datasets at Marocche di Drò. Red dashed lines represent regression lines; R² values are shown. (j) Inverted resistivity model derived from the spike-electrode dataset at Marocche di Drò. (m) Inverted resistivity model derived from the net-electrode dataset at Marocche di Drò. (p) Color scale used for the inverted resistivity models at the Marocche di Drò site. (b), (e), (h), (k), (n), and (q) correspond to (a), (d), (g), (j), (m), and (p), respectively, for the Sadole rock glacier test site. (c), (f), (i), (l), (o), and (r) correspond to (a), (d), (g), (j), (m), and (p), respectively, for the Flüela rock glacier test site.

4 Results and interpretation

In the comparative test at the Marocche di Drò site, the grounding resistances measured with the two types of electrodes were very similar (Fig. 2a), with values <200 kΩ (most being <100 kΩ), ensuring acceptable conditions to acquire ERT measurements in this challenging environment (Pavoni et al., 2022). These favorable resistance values also resulted in optimal injected currents, which were consistently above 3 mA, as shown in Fig. 2c. This is further confirmed by the quality of the acquired data: most of the measured quadrupoles (85 % for spike and 90 % for net electrodes) show a reciprocal error < 5 % (Fig. 2b), which was chosen as a threshold to filter the datasets and used as the expected error in the inversion processes. As highlighted in the scatterplots (Fig. 3a and g), there is a very high correlation between the measured apparent resistivities and the inverted resistivities, both showing R²=0.99. The obtained apparent (Fig. 3d) and inverted resistivity sections (Fig. 3j and m) are nearly identical and allow for the reconstruction of the known structure of the landslide deposit (Weidinger et al., 2014), where large blocks with extensive air voids are characterized by high resistivity values near the surface. At greater depths, resistivity values decrease significantly, confirming the presence of more heterogeneous and finer sediments.

At the Sadole rock glacier, the measured grounding resistances were significantly improved using the net-electrodes (Fig. 2d). With the spike-electrodes array, almost half of the grounding resistances have values >100 kΩ, and >50 % of the values are higher >200 kΩ. In contrast, in the case of net electrodes, the grounding resistance values are clearly lower, which enables the injection of higher currents (Fig. 2f) and consequently the acquisition of a higher-quality dataset (Fig. 2e). In the dataset acquired with the net electrodes, more than half of the quadrupoles exhibit a reciprocal error below 1 %, and only four quadrupoles exceed 5 %. Nonetheless, the spike electrodes also yielded a high-quality dataset, with 90 % of the quadrupoles showing a reciprocal error below 5 %. Despite these minor differences in data quality, the same filtering threshold (reciprocal error >5 %) was applied to both datasets and used as the expected data error during the inversion process. As illustrated in Fig. 3b and i, the measured apparent resistivities and the corresponding inverted values exhibit a strong correlation, albeit slightly lower than at the Marocche di Drò site (R²=0.91 for apparent resistivities and R²=0.93 for inverted values). Once again, the apparent (Fig. 3f) and inverted resistivity sections (Fig. 3k and n) are nearly identical and clearly reveal the presence of a high-resistivity frozen layer at approximately 10 m depth (Bast et al., 2024).

The measured grounding resistances at the Flüela rock glacier site (Fig. 2g) were generally higher than at the other two sites. With both electrode types, more than half of the electrodes exhibited grounding resistances >200 kΩ. As a consequence, the injected currents (Fig. 2i) were consistently lower compared to those recorded at the Marocche di Drò and Sadole sites. This is reflected in the dataset quality (Fig. 2h), where only 78 % of the acquired quadrupoles in both datasets exhibit a reciprocal error <5 %, and 90 % remain below 10 %, which was adopted as the expected error for the inversion process. The correlation between apparent resistivities obtained using the two electrode types is also lower than at the other sites (Fig. 3c, R²=0.80). Accordingly, the inverted resistivities from the resulting models show a reduced correlation as well (R²=0.88; Fig. 3h). Despite minor differences, both the apparent (Fig. 3e) and inverted resistivity sections (Fig. 3l and o) derived from the two electrode types consistently delineate the same subsurface structure: a high-resistivity permafrost body a few meters below the surface in the first half of the profile (x<20 m). Variations appear at greater depths, where resistivities in Fig. 3l are higher than in Fig. 3o, and toward the front of the array (x>25 m), where lower values indicate unfrozen ground.

Finally, Fig. 2j–l clearly show that, despite the net electrodes being left in situ (Sadole rock glacier) for over a year, their performance remained essentially unchanged. They allowed for the acquisition of comparable grounding resistance values and injected currents, as well as similar reciprocal errors in the datasets collected in June 2024 and June 2025.

5 Discussion and conclusions

The results confirm that lower grounding resistance enhances current injection and improves ERT data quality (Pavoni et al., 2022). The Marocche di Drò site exhibited optimal conditions, characterized by minimal grounding resistance, highest injected currents, and improved data quality. Similarly, the Sadole site showed relatively low grounding resistance and consistently high-quality data. In contrast, the Flüela site presented moderately higher grounding resistance, resulting in reduced injected current and lower data quality; nevertheless, datasets remained suitable for processing after applying a 10 % reciprocal error threshold, an acceptable criterion given the site's challenging surface conditions.

These variations likely reflect differences in subsurface lithologies: limestone at the Marocche site facilitates galvanic contact more effectively than ignimbrite (Sadole site) or paragneiss (Flüela site) (Duba et al., 1978). Moreover, sites with lower grounding resistance and higher data quality exhibited stronger correlations between apparent and inverted resistivities across electrode types. At Marocche di Drò, results obtained with both electrode types showed excellent agreement. At Sadole, the correlation between datasets remained high despite a slight decrease in data quality. At Flüela, correlation further declined; however, inverted resistivity models consistently resolved the near-surface permafrost structure.

Overall, the proposed stainless steel-net electrodes perform comparably to traditional steel spikes, providing a lightweight, low-cost, and reliable solution for ERT surveys in coarse-blocky terrains. They retain the operational advantages of textile electrodes, such as ease of insertion and removal between blocks, while overcoming critical limitations identified by Bast et al. (2024), including greater durability due to oxidation resistance, reduced cost and weight, and enhanced mechanical robustness. Finally, long-term monitoring at the Sadole site further confirmed stable electrode performance over one year, supporting their suitability for permanent ERT installations targeting permafrost monitoring. In contrast, textile electrodes are unsuitable for long-term applications due to oxidation issues and limited durability.

As proposed by Mudler et al. (2021), a potential strategy to facilitate electrode transport involves carrying only the steel net or conductive textile sheets to the rock glacier and assembling the electrode bags in situ using locally sourced fine material. This approach could reduce transport volume – and weight in the case of textile electrodes – but requires a substantial time investment to procure adequate fine material on-site, which is rarely abundant in rock glacier environments, as well as to assemble 48 to 96 electrodes in the field, potentially impacting fieldwork efficiency.

Future work will investigate the applicability of stainless steel-net electrodes for induced polarization measurements in both time and frequency domains.
